Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | M320EDCP-i |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + honeycomb carton packing |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / month |
| Panel: | A-Si Active Matrix TFT-LCD | Resolution: | 1920 X 1080 |
|---|---|---|---|
| Brightness: | 2000 - 2500 Nits | Power Consumption: | 145W |
| Operating Voltage: | 100 - 240VAC 50/60Hz | Interface: | VGA, HDMI |
| Color: | 16.7M 8-bit | Warranty: | 1 Year Warranty, Lifetime Maintenance |
| High Light: | Outdoor LCD Digital Signage RK3399,3000 Nits Outdoor LCD Digital Signage,Bluetooth Wall Mount LCD Digital Signage |
||

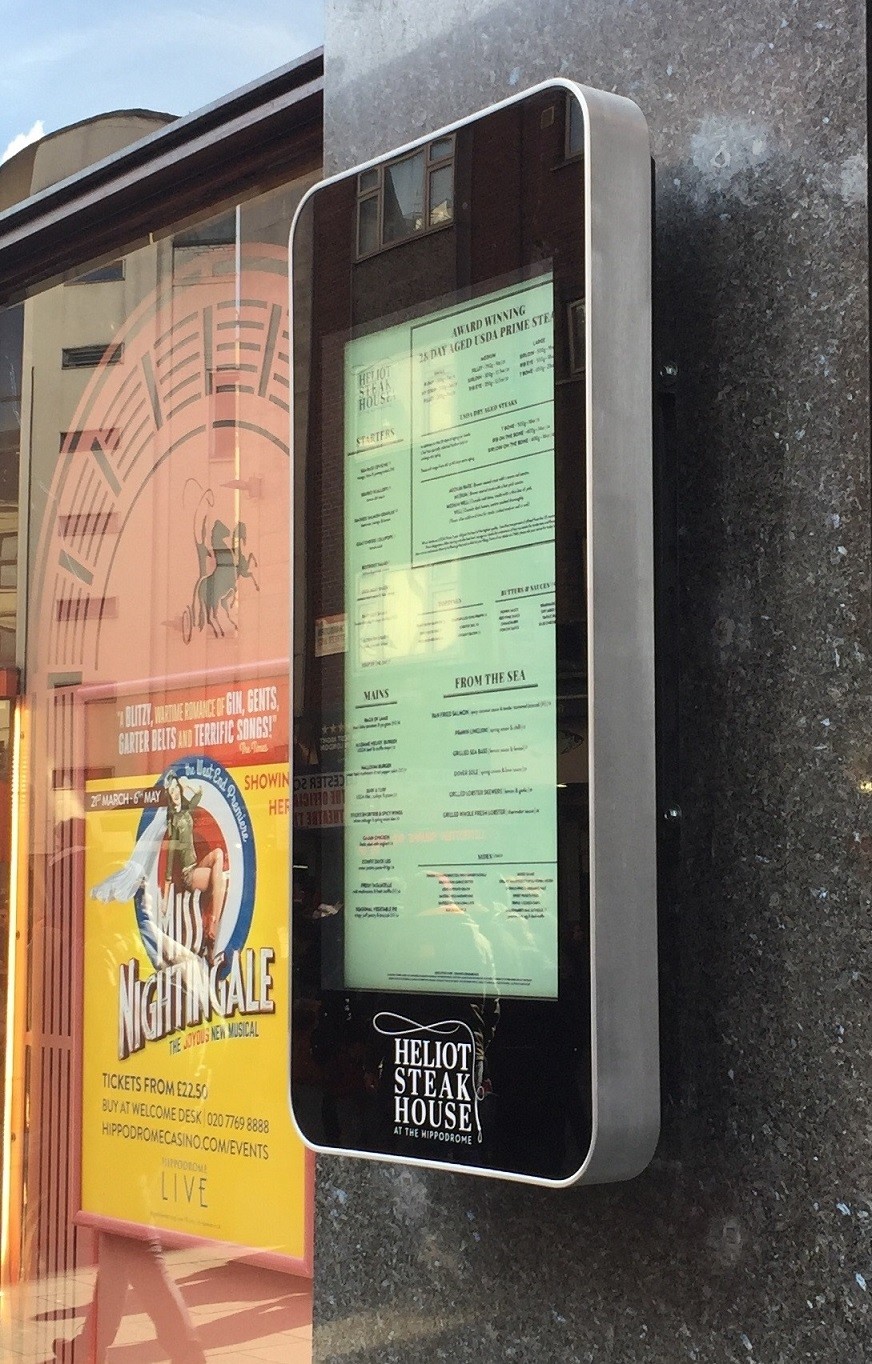

32 inch High Brightness Outdoor Wall Mount LCD Digital Signage
Adopt straight down high bright LED backlight, LCD brightness can reach to 2000-2500 nits (customized), Built-in light sensor, the screen brightness can be adjusted automatically according to the ambient brightness, energy saving.
System functions:
Android hardware options:
CPU: RK3288 / RK3399
RAM+ROM: 2G+8G/4G+32G
Operating system: Android 7.1
Interface: RS232.4,TTL serial port.1, USB3.01, USB2.05
Network support: 3G/4G/Wi-Fi/RJ45 Ethernet/Bluetooth /GPS
Intelligent dimming mode
The day is gorgeous and the night is not dazzling
Day: Still clear under the sunlight
Night: the picture is automatically adjusted by light sensor, soft and not dazzling
Specification Of Outdoor LCD Digital Signage
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 392.8 x 698.4 mm portrait orientation |
| NATIVE RESOLUTION | 1080 x 1920 RGB |
| PIXEL PITCH | 0.55926(H) x 0.55926(V) mm |
| COLOR | 16.7 Million, 8 bits |
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) |
| BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 9000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 12 msec typical |
| INTERFACE | VGA, HDMI |
| MEDIA PLAYER | Media Player (RK3288 Android OS ) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 110W for 2000 nits, 145W for 2500 nits |
| STANDBY MODE | 3 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
|
OPERATING (option) |
Media Player RK3288 Quad-core Cortex-A17 1.8GHz, 2GB DDR3, 32-64GB SD, 4 x USB ports, 1 x RJ45 |
| 1 x HDMI, 2 X RS232, Android OS 5.1 | |
|
DIMENSION WEIGHT |
1041(H) x 520(W) x 140(D)mm |
| Waterproof IP54 Enclosure option | |
| COOLING | By cooling fans controlled by MCU for outdoor |
| 400W Mini air-condition option for harsh outdoor | |
| ENVIRONMENTAL |
Operating Temperature -10-45oC, |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
Feature Of Outdoor LCD Digital Signage
1. Comfortable 3D vision
- Impressive 3D experience, obvious pop-out effect and adjustable depth of field, ensuring comfortable viewing.
2. Superior lenticular lens technology
- Independently developed lens film with world-leading quality offering ultrahigh precision and high transmittance.
3. Precise adhesion
- High-precision aligned full adhesion technology, ensuring quality 3D effect with naked eyes.
4. Superior image quality guaranteed with algorithms
- World-leading 3D image interleaving algorithm and multi-view conversion algorithm.
5. Clear and fine image of the digital signage screen
- Ultra-HD 4K panel in combination with 3D image processing technology to avoid double image.
6. Ultra-wide angle of view for watching from multiple points
- Ultra-wide angle of view and multiple points of view ensuring multiple people to experience the glasses-free 3D effect.
Product Features:
1. Automatic brightness control: automatically adjust the brightness of the screen according to the changes of outdoor environment light, bright and visible under the sunlight during the day, soft and gorgeous at night, energy saving and environmental friendly.
2. Intelligent temperature control: According to the change of internal environment temperature, intelligent start fans or air conditioner to dissipate heat. When the temperature reaches above 30℃, the fans or air conditioner will start to dissipate heat automatically. When the temperature is below 20℃, the cooling fans or air conditioner will be automatically stopped.
3. High temperature protection function: When casing internal ambient temperature is above 60℃, the protection function will automatically start, automatically reducing the brightness to around 500 nits; When the internal ambient temperature is below 40℃, the brightness will be automatically restored to the appropriate viewing brightness.
4. Low-temperature protection: When the internal environment temperature is lower than -10℃, the heating function will be started automatically; When the internal temperature is above 5℃, the heating function will be stopped automatically. (This option is suitable for harsh outdoor working environment below -20℃)
5, intelligent remote monitoring function: through RS232 communication interface and network connection, real-time device security and working status data upload, remote monitoring of the main parts of the machine is working properly, timely find the device security or any failure, reduce maintenance time and cost, improve maintenance efficiency.
6. Besides anti-glare or AR vandal glass, anti-UV filim option on the front glass is available to make LCD screen black spots problem free even operating under strong direct sunshine
Why we were chosen:
1. More than 10 years of professional experience in outdoor digital signage manufacturing.
2. LCD items from 6.5" to 86" in various brightness can be customized according to your specific requirements.
3. The minimum order quantity can meet all your requirements.
4. Modes of transportation: International express, air transportation and sea transportation.
5. Warranty: 1 year warranty, lifetime maintenance.
