Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | M320EDCP-i |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / month |
| Resolution: | 1920 X 1080 | Brightness: | 2000 Nits- 2500 Nits |
|---|---|---|---|
| Power Consumption: | 145W At 2500 Nits Level | Operating Voltage: | 100 - 240VAC 50/60Hz |
| Active Area: | 698.4 X 392.8 Mm | Touch Screen: | 10 Points PCAP Option |
| High Light: | VGA wall mount LCD digital signage,PCAP wall mount LCD digital signage,2500 Nits Wall Mount LCD Display |
||

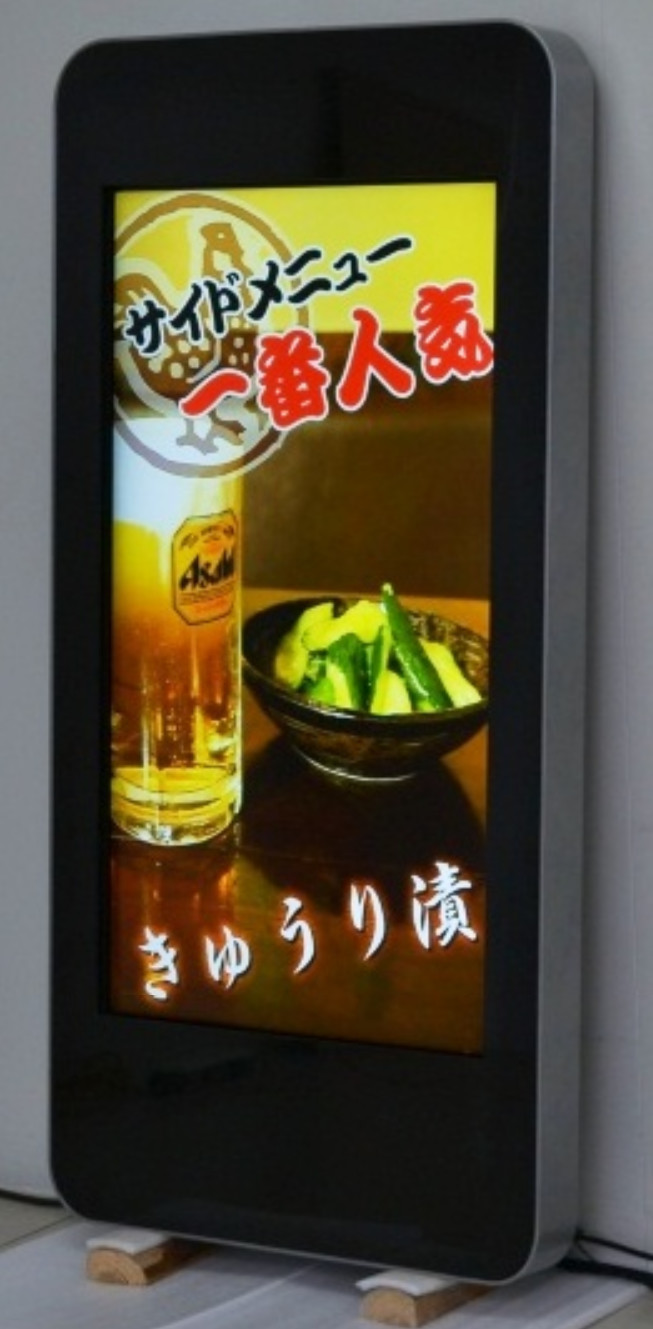

32 Inch High Brightness Outdoor Wall Mount LCD Digital Signage
Adopt direct type high bright LED backlight, LCD brightness can be increased up to 2000-2500 nits (customized), Built-in light sensor, the screen brightness can be adjusted automatically according to the ambient brightness, energy saving.
System functions:
Android Player options:
CPU: RK3288 / RK3399
RAM+ROM: 2G+8G/4G+32G
Operating system: Android 7.1
Interface: RS232.4,TTL serial port.1, USB3.01, USB2.05
Network support: 3G/4G/Wi-Fi/RJ45 Ethernet/Bluetooth /GPS
Specification Of Outdoor LCD Digital Signage
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 392.8 x 698.4 mm portrait orientation |
| NATIVE RESOLUTION | 1080 x 1920 RGB |
| PIXEL PITCH | 0.55926(H) x 0.55926(V) mm |
| COLOR | 16.7 Million, 8 bits |
| HORIZONTAL FREQ. | 121.8KHz ~ 136.4KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) |
| BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 9000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 12 msec typical |
| INTERFACE | VGA, HDMI x 2 |
| MEDIA PLAYER | Media Player (RK3288 Android OS ) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 110W for 2000 nits, 1450W for 2500 nits |
| STANDBY MODE | 3 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
|
OPERATING (option) |
Media Player RK3288 Quad-core Cortex-A17 1.8GHz, 2GB DDR3, 32-64GB SD, 4 x USB ports, 1 x RJ45 |
| 1 x HDMI, 2 X RS232, Android OS 5.1 | |
| Touch Screen | 10 Points PCAP option |
|
DIMENSION WEIGHT |
1041(H) x 520(W) x 140(D)mm |
| Waterproof IP54 Enclosure with Wall Mount Bracket | |
| COOLING | By cooling fans controlled by MCU for outdoor |
| 400W Mini air-conditioner option for Harsh outdoor | |
| ENVIRONMENTAL |
Operating Temperature -10-50oC, |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
Advantage Of Outdoor LCD Digital Signage
Waterproof
1. Unique patented sealing technology;
2. Outdoor security anti-corrosion more than 8 years;
3. IP65 protection grade enclosure dustproof and waterproof even under the 20 mbar pressuring, harmless when water jetting in every direction.
Extreme Temperature
1. Intelligent air conditioner cooling system integrated cooling and heating;
2. Unique patented intelligent temperature control technology;
3. Work stably and efficiently in wide temperature range from -40°C to +55°C;
4. housing enclosure made of non-oxidizing material zinc coated steel.
