Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T650EDCP-DF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 week |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50-100 unit / month |
| Type: | TFT-LCD | Brightness: | 2500 - 3000 Nits |
|---|---|---|---|
| Operating Voltage: | AC100~240V 50 /60 HZ | Operating Temperature: | -30 --- 50 Deg C |
| Power Comsumption: | 550W(FHD) / 650W(4K) | Resolution: | 3840 X 2160 RGB (4K) UHD |
| High Light: | TFT Double Sided Digital Signage,3840 X 2160 Double Sided Digital Signage,IP65 double sided lcd screen |
||

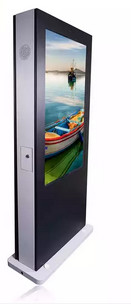

Maxbright 65" Outdoor Double Sided High Bright IP65 Advertising Totem Model: T650EDCP-DF
LED array Backlight Enhanced
Model: T650EDCP-DF
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2500 - 3000 nits, Sunlight Viewable
QWUXGA 3840 x 2160 RGB(4K) Resolution
Aspect Ratio: 9:16 in portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30 ～ 50o C
Media player box or mini PC for content playback
Waterproof IP65 enclosure
| PANEL TYPE | a-Si active matrix TFT-LCD | ||
| ACTIVE AREA | 803.5 x 1428.5 mm in portrait orientation | ||
| NATIVE RESOLUTION | 3840 x 2160 RGB(4K) Max. Resolution | ||
| PIXEL PITCH | 0.372(H) x 0.372(V) mm | ||
| COLOR | 1.07 Billion, 10 bits | ||
| HORIZONTAL FREQ. | 244KHz ~ 280KHz | ||
| VERTICAL FREQ. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) | ||
| BRIGHTNESS | 2500-3000 cd/m2, LED Backlight Enhanced | ||
| CONTRAST RATIO | 1400:1, Dynamic contrast ratio: 10000:1 | ||
| DIMMING | Auto-dimming by Light Sensor | ||
| VIEWING ANGLE | 89/89/89/89 | ||
| RESPONSE TIME | 5msec typical | ||
| INTERFACE | VGA,, HDMI x 2 | ||
| MEDIA PLAYER | Media Player (RK3288 CPU) (option) | ||
| REMOTE CONTROL | Support for Full OSD Features | ||
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz | ||
| POWER CONSUMPTION | 2500 nits: 1100W for two panels whole unit | ||
| STANDBY MODE | 10 Watt or less | ||
| ACCESSORIES | AC Power Cord, Remote Controller | ||
| HDMI, VGA cable x 2 | |||
| OPERATING | Mini PC: i5-6500 CPU 3.2GHz, 4-8GB DDR2 | ||
| (option) | 128G SSD, 5 x USB ports, 1 x RJ45, WiFi (option) | ||
| TOUCH | 10 points PCAP, or metal mesh option | ||
|
DIMENSION WEIGHT |
2200(H) x 1110(W) x 320(D) mm, (w/o basement) 285 Kg approx (without air-con) |
||
| Waterproof IP65 Enclosure | |||
| COOLING | By cooling fans controlled by MCU for outdoor | ||
| 1200W air-conditioner option for harsh outdoor | |||
| FRONT PROTECTION | 3+3 AR vandal glass or 6mm AR vandal glass | ||
|
ENVIRONMENTAL OPTION |
Operating Temperature -20-45oC, Wide temp. -30-50oC (with cool/warm air-con) |
||
| Operating Humidity 10%-85% | |||
| Storage Temperature -30-60oC | |||
| Storage Humidity 5%-90% | |||
| WARRANTY | One Year |
Feature Of Outdoor LCD Digital Signage
1. Comfortable 3D vision
- Impressive 3D experience, obvious pop-out effect and adjustable depth of field, ensuring comfortable viewing.
2. Superior lenticular lens technology
- Independently developed lens film with world-leading quality offering ultrahigh precision and high transmittance.
3. Precise adhesion
- High-precision aligned full adhesion technology, ensuring quality 3D effect with naked eyes.
4. Superior image quality guaranteed with algorithms
- World-leading 3D image interleaving algorithm and multi-view conversion algorithm.
5. Clear and fine image of the digital signage screen
- Ultra-HD 4K panel in combination with 3D image processing technology to avoid double image.
6. Ultra-wide angle of view for watching from multiple points
- Ultra-wide angle of view and multiple points of view ensuring multiple people to experience the glasses-free 3D effect.
