Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T320EDCP |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton + pallet packaging |
| Delivery Time: | 4~5 week |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50-100 unit / month |
| Operating Voltage: | AC100~240V 50 /60 HZ | Operating Temperature: | -30 --- 50 Deg C |
|---|---|---|---|
| Power Comsumption: | 135W | Application: | Outdoor Advertising Publication, Interactive Touch, Info Search |
| Input Voltage: | AC100~240V 50 /60 HZ | Resolution: | 1920 X 1080 |
| Highlight: | IP65 Floor Standing Touch Screen Kiosk,135W Floor Standing Touch Screen Kiosk,32 Inch lcd touch screen kiosk |
||

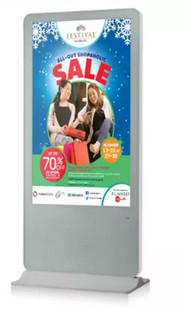

Maxbright 32" High Bright LED Backlight Enhanced Outdoor LCD Kiosk Model: T320EDCP
LED Array Backlight Enhanced
Model: T320EDCP
Quick Detail Of Outdoor LCD Digital Signage
1. Professional Outdoor kiosk with excellent design;
2. Industrial level 43” brand new LG original panel with LED backlight;
3. Fully meet outdoor IP55 usage standard application;
4. 49”, 55", 65” size also available;
5. Support industrial level fan ventilating, ensure reliable running;
6. Support anti-reflection glass, make sure best view experience;
7. Support high brightness of 2000 nits, ensure readable under sunlight;
8. Built in auto-temperature control system, can turn off the kiosk automatically;
9. Intelligent air-looping system, can protect the kiosk panel against the so called “blackout”;
FEATURES:
Active Matrix TFT-LCD PD panel
High Brightness 2500 nits, Sunlight Viewable
1920 x 1080 Max. Resolution
Aspect Ratio: 9:16 in portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30～50o C
Media player box or mini PC for content display
Air-conditioner cooling for harsh environment option
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 698.4 x 392.85 mm in portrait mode |
| NATIVE RESOLUTION | 1080 x 1920 RGB |
| PIXEL PITCH | 0.36375(H) x 0.36375(V) mm |
| COLOR | 16.7 M 8 bits depth |
| HORIZONTAL FREQ. | 121.8KHz ~ 136.4KHz |
| VERTICAL FREQ. |
95Hz ~ 121.2Hz |
| BRIGHTNESS | 2000 - 2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 8000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 10ms G to G |
| INTERFACE | VGA, HDMI x 3 |
| MEDIA PLAYER | Media Player (RK 3288 CPU) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 150W at 2500 nits level w/o Air-con |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: NDiS-1660C, 2GB DDR2, 4GB option |
| (option) | 2.5” 500GB HD, 4 x USB ports, 1 x RJ45, WiFi |
| 3G or 4G module option | |
|
DIMENSION WEIGHT |
1750(H) x 590(W) x 180(D) w/o Air-Con, 115 Kg approx. |
| ENCLOSURE | Iron sheet with outdoor powder painting |
| COOLING | By cooling fans controlled by MCU for outdoor |
|
ENVIRONMENTAL
|
Operating Temperature -20-50C, Wide temp. -30-50C (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60C | |
| Storage Humidity 5%-90% | |
| WARRANTY |
One year, limited for 2nd year |
