Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | High Brightness Open Frame LCD Module |
| Certification: | CE |
| Model Number: | OF550EDCL-VW |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: | OF550EDCL-VW | Name: | High Brightness LCD Module |
|---|---|---|---|
| Brand: | High Brightness Open Frame LCD Module | PIXEL PITCH: | 0.5415(H) X 0.5415(V) Mm |
| RESPONSE TIME: | 12 Msec Typical | WARRANTY: | One Year |
| Highlight: | 55 inch High Brightness LCD Module,1800nits High Brightness LCD Module,1800nits high brightness lcd display |
||

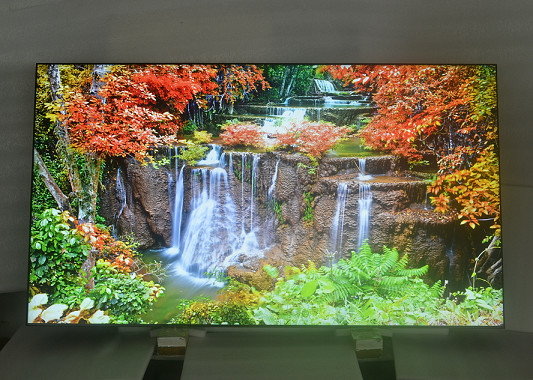

Maxbright HB 55inch High Brightness LCD Module LED Array Backlight Enhanced
FEATURES:
Active Matrix TFT-LCD Display, Supper Narrow Bezel
High Brightness 1800 nits, Sunlight Viewable
1920 x 1080 Max. Resolution
Aspect Ratio: 16:9, Landscape mode
Wide Viewing Angles 178 deg (L/R/U/D)
Main Specs of 55” HB Video Wall Module
|
PANEL TYPE |
a-Si active matrix TFT-LCD |
|
|
ACTIVE AREA |
1209.6(H) x 680.4(V) mm, landscape orientation |
|
|
NATIVE RESOLUTION |
1920 x 1080 RGB stripe arrangement |
|
|
PIXEL PITCH |
0.5415(H) x 0.5415(V) mm |
|
|
COLOR |
1.06 Billion, 10 bits |
|
|
HORIZONTAL FREQ. |
65KHz ~ 70KHz |
|
|
VERTICAL FREQ. |
47Hz ~ 53Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) |
|
|
BRIGHTNESS |
1800-2000 cd/m2, LED Backlight Enhanced |
|
|
CONTRAST RATIO |
1400:1, Dynamic contrast ratio: 8000:1 |
|
|
DIMMING |
Auto-dimming by Light Sensor for whole system |
|
|
VIEWING ANGLE |
89/89/89/89 |
|
|
RESPONSE TIME |
12 msec typical |
|
|
INTERFACE |
VGA, AV, HDMI, DVI-IN and DVI-OUT |
|
|
CONTROLLER |
Video wall controller built-in, Daisy Chain model |
|
|
REMOTE CONTROL |
Support for Full OSD Features via RS232-in and RS232-out |
|
|
OPERATING VOLTAGE |
AC 100 ~ 240V 60/50Hz |
|
|
POWER CONSUMPTION |
460W for 1800 nits, 510W for 2000 nits |
|
|
