| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T550EDCP-DF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 week |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50-100 unit / month |
| Type: | 55 Inch True Outdoor Dual Face IP65 Digital Advertising Signage Totem | Brightness: | 2000 -2500 Nits |
|---|---|---|---|
| Operating Voltage: | AC100~240V 50 /60 HZ | Power Comsumption: | 450W(FHD) / 550W(4K) |
| Application: | Outdoor Advertising Publication, Interactive Touch, Info Search | Resolution: | 1920 X 1080RGB, 3840 X 2160(4K) |
| High Light: | IP65 Double Sided LCD Display,55 Inch Double Sided LCD Display,55 Inch Floor Standing Digital Signage |
||

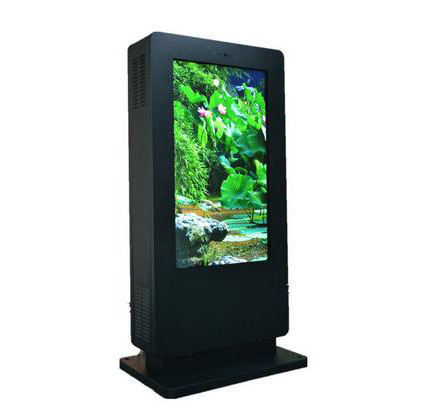

55 Inch IP65 Double Sided LCD Totem Floor Standing Digital Signage
Maxbright 55" Outdoor Dual Face High Bright IP65 Advertising Totem Model: T550EDCP-DF
LED array Backlight Enhanced
Model: T550EDCP-DF
FEATURES:
Active Matrix TFT-LCD PD panel
Dual face 55” Portrait display
High Brightness 2500 nits, Sunlight Viewable
1920 x 1080 Resolution, 3840 x 2160 model available
Aspect Ratio: 9:16 in portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30～50o C
Media player box or mini PC for content display
Air-conditioner cooling for harsh environment option
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 680.4 x 1209.6 mm portrait for both sides |
| NATIVE RESOLUTION | 1080 x 1920 RGB, 4K model available |
| PIXEL PITCH | 0.21(H) x 0.63(V) mm |
| COLOR | 1.073 G, 10 bits depth |
| HORIZONTAL FREQ. | 121.8KHz ~ 140KHz |
| VERTICAL FREQ. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS | 2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1300:1, Dynamic contrast ratio: 6500:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 4.5ms |
| INTERFACE | VGA, HDMI x 3 |
| MEDIA PLAYER | Media Player (RK 3288 CPU) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 840W at 2500 nits level for two sides w/o air-con |
| STANDBY MODE | 10 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: NDiS-1660C, 2GB DDR2, 4GB option |
| (option) | 2.5” 500GB HD, 4 x USB ports, 1 x RJ45, WiFi |
| 3G module option | |
|
DIMENSION WEIGHT |
2100(H) x 960(W) x 310(D) mm w/o Air-Con, 245 Kg approx. |
| ENCLOSURE | Iron sheet with outdoor powder painting |
| COOLING | By cooling fans controlled by MCU for outdoor |
|
ENVIRONMENTAL
|
Operating Temperature -20-50C, Wide temp. -30-50C (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60C | |
| Storage Humidity 5%-90% | |
| WARRANTY |
One year, limited for 2nd year |
Advantage Of Double Sided LCD Display
Sun Readable
Waterproof Enclosure
1. Unique patented high brightness backlight and sealing technology;
2. Outdoor security anti-corrosion more than 5 years;
3. IP65 protection grade enclosure dust can not enter into the display under the 20 mbar pression, harmless when water jetting in ever direction.
4. Anti-UV film option on the front AR glass is available to make screen black spots problem free even operating under strong direct sunshine.
