Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE Certificate |
| Model Number: | M121EECL-R |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: | M121EECL-R | Active Area: | 245.76(H) X 184.32(V)mm |
|---|---|---|---|
| Brightness: | 1200 Cd/m² | Resolution: | 1024 X 768 |
| Pixel Pitch(mm): | 0.24(H) X 0.24(V) | Color: | 6 Bits 262.144K |
| High Light: | 1600nits Rugged LCD Monitor,0.24mm Rugged LCD Monitor,DC12V Rugged LCD Monitor |
||

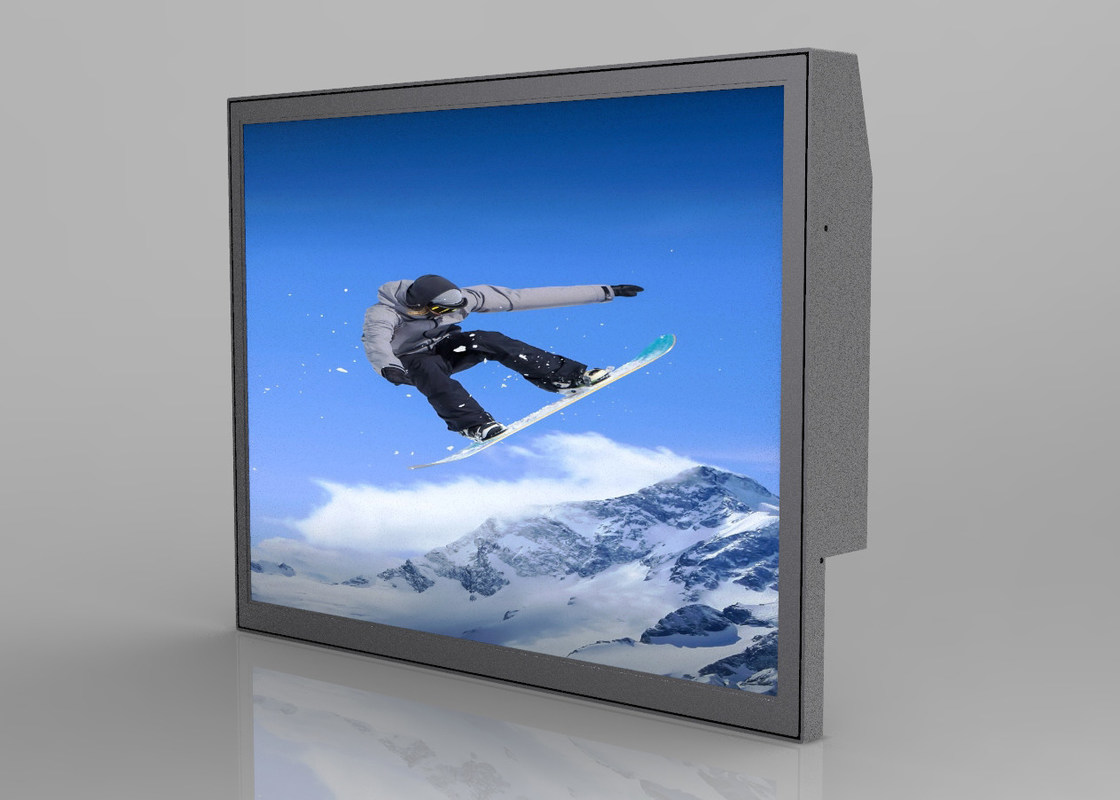

9-36VDC 12.1 Inch TFT 1200nits Rugged LCD Monitor
12.1” High Bright Rugged LCD Monitor Model : M121EECL-R
with LED edge type backlight enhanced
Model :M121EECL-R
The Maxbright M121EECL-R is an innovative sunlight readable, LED backlight LCD display. It provides LCD panel
PRODUCT HIGHLIGHTS
High Brightness 1200 nits
Sunlight Readable
Wide Operation Temperature
LED Backlight
Low Power Consumption
Slim Bezel
BL MTBF: 100,000 hours
| Items | Parameters |
| Active Area | 245.8(H) x 184.3(V)mm |
| Brightness | 1200 cd/m² |
| Resolution | 1024 x 768 |
| Contrast Ratio | 700:1 |
| Pixel Pitch(mm) | 0.24(H) x 0.24(V) |
|
Pixel Pre Inch (PPI)
|
106 |
| Viewing Angle | 160°(H) , 160°(V) |
| Color Saturation(NTSC) | 80% |
| Display Colors | 262.144K 6 bits |
| Response Time(Typical) | 6ms tr, 17ms tf |
| Panel Interface | LVDS |
|
AD B oard Input Inte rface |
VGA, DVI |
|
Input Powetr |
12VDC, 9-36VDC option |
|
Powe r Consumption |
13.8W |
|
OSD Key |
5 Keys (Power Switch, Menu, +, - Enter) |
|
OSD Control |
Brightness, Color, Contrast, Auto Turing, H/V Position…etc |
|
Dimensions (mm) |
265x208x40 mm |
|
Bezel Size(U/B/L/R) |
11.65/8.5/7/8.85mm |
|
Weight (Net) |
1.8kg |
|
Mounting |
75x75 mm |
|
Operating Temperature |
-30˚C ~ 85˚C |
|
Storage Temperature |
-30 ˚C ~ 85 ˚C |
