Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | High Bright Rugged Monitor |
| Certification: | Certificate of Approval |
| Model Number: | Model : M150EECL—R |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| M150EECL—R: | Model : M150EECL—R | ||
|---|---|---|---|
| Highlight: | ruggedized lcd monitor,high brightness lcd monitor |
||

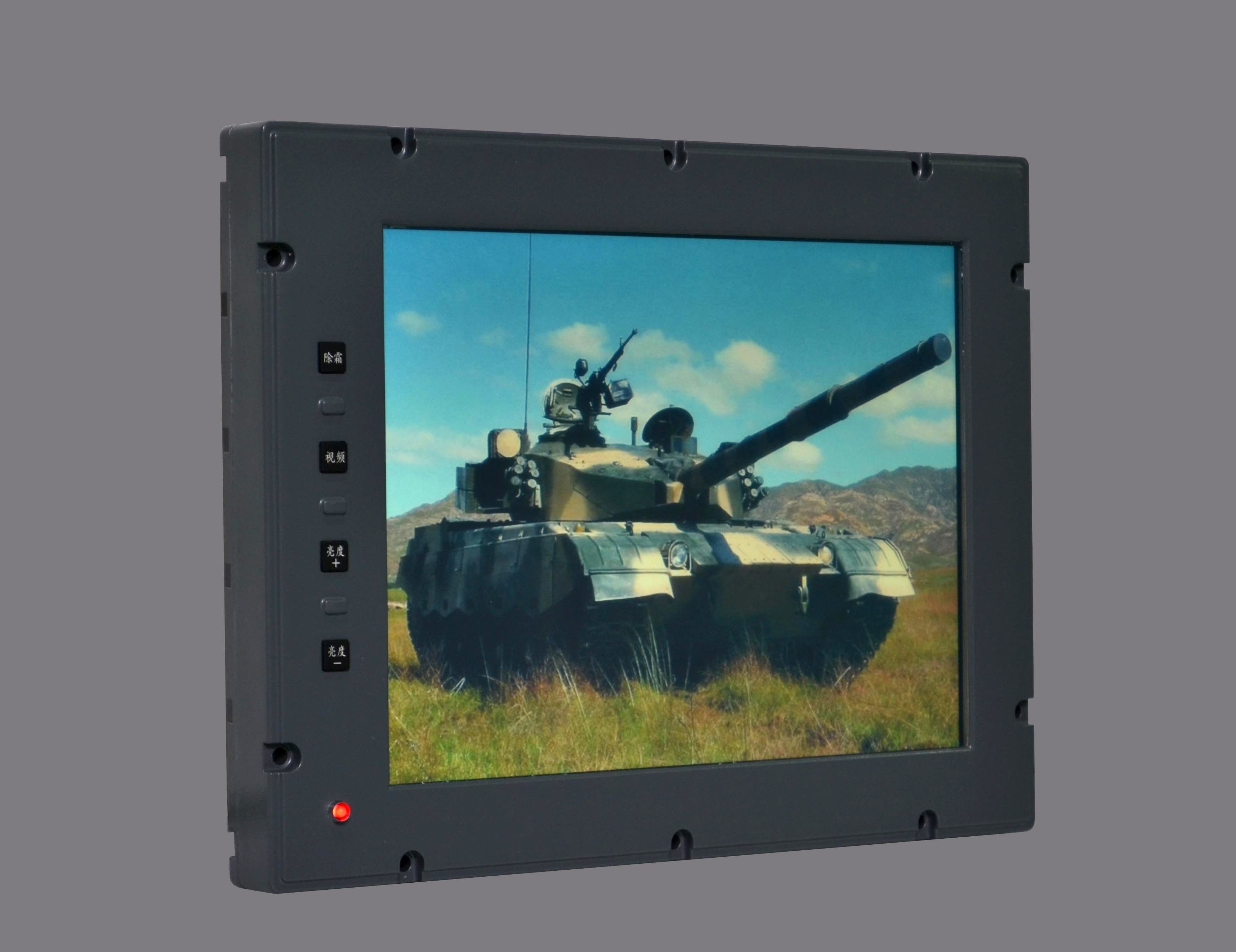

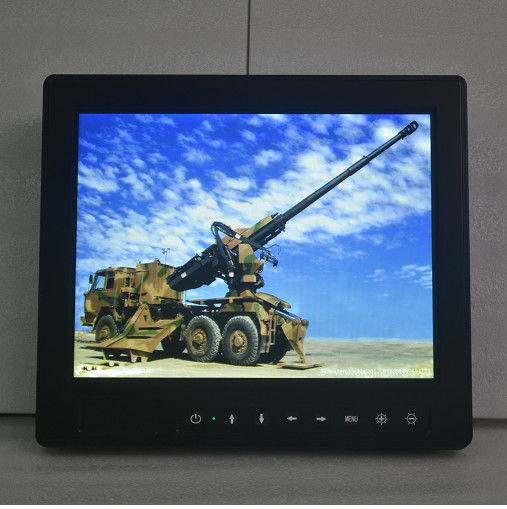

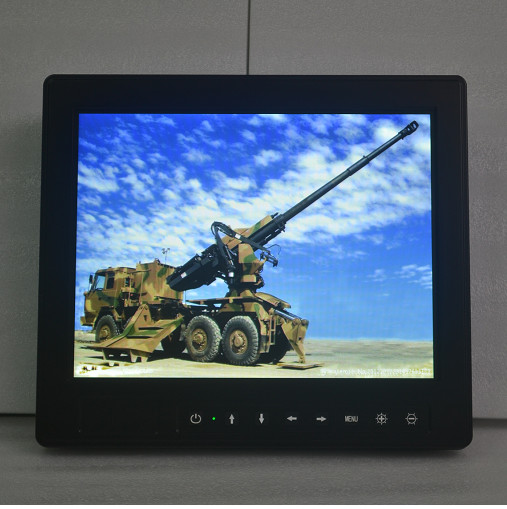

15” High Bright Rugged LCD Monitor Model : M150EECL—R
with LED edge type backlight enhanced
Model :M150EECL—R
The Maxbright M150EECL-R is a high bright 15″ TFT LCD to create a wide-temperature, ruggedized, flat panel monitor perfect for a variety of HMI and control applications in hazardous area locations.
Featuring LED backlight technology, the M150EECL-R offers an impressive extended operating temperature range of -30° to +65°C with no internal heaters or cooling fans required. The front bezel of the monitor maintains NEMA 4/IP65 protection from sprayed liquids. For increased durability, the touchscreen integrates a vandal AR glass surface that is waterproof, abrasion/scratch resistant, and impervious to flames, chemicals, solvents and stylus use.
PRODUCT HIGHLIGHTS
| Items | Parameters |
| Active Area | 304.128(W) x 228.096(V)mm |
| Brightness | 1350 cd/m² |
| Resolution | 1024 x 768 RGB VGA to XGA resolution |
| AR/Bonding | AR glass /ITO coading with Optical Bonding |
| Interface | DVI,VGA,RS-232,GPI/O,Power Input |
| Power Consumption | 23W(Heater Glass 70W) |
| Operating Voltage | 9~36VDC |
| Operating Temperature | -30°C - 65°C |
| EMC | CE102 10KHz–10MHz RE102 10KHz–1GHz or MIL-STD-461E |
| Anti-Shock and Vibration | Design Satisfy GJB 150.16A GJB 150.18A or MIL-STD-810 |
